MalDuino W
Section titled “MalDuino W”
A nicely encased, inconspicuous-looking BadUSB by Maltronics.
➕ Having USB-A and USB-C makes it compatible with all kind of devices.
➕ It comes flashed with the WiFi Duck firmware and works plug and play.
❤️ Every purchase supports this project and other open-source Spacehuhn projects!
Additional Documentation
Section titled “Additional Documentation”Additional documentation can be found here: http://docs.maltronics.com/malduino-w/
DSTIKE WiFi Duck
Section titled “DSTIKE WiFi Duck”
A custom-designed development board by Travis Lin.
➕ Can be flashed over the air and manually using the dip switches.
⚠️ Might require you to install the latest firmware to make it work.
❤️ Every purchase supports this project and other open-source Spacehuhn projects!
Additional Documentation
Section titled “Additional Documentation”Watch the “How to Update Tutorial” here: https://youtu.be/e3-nsOjclsY
The 8-bit DIP switch makes it easy for you to access the Atmega32u4 or ESP8266 independently if you ever need to reflash them.
| Mode | Atmega32u4 | ESP8266 | DIP-switch | Image |
|---|---|---|---|---|

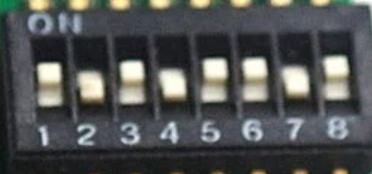

| Default Operating Mode | USB | On | 10101101 |  |

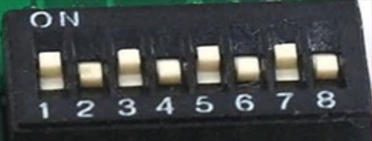

| Atmega32u4 Flash Mode | USB | Off | 10101010 |  |

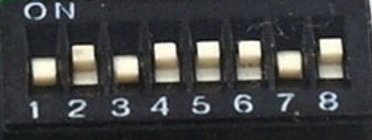

| ESP8266 Flash Mode | Off | USB | 01011101 |  |
